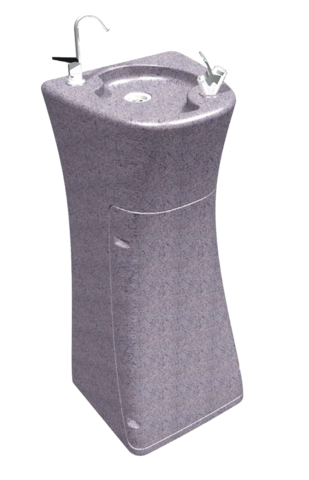

Awesome Water Ruff "N" Tuff
GREAT FOR OFFICES, GYMS, BUILDING AND CONSTRUCTION SITES
Awesome Water Ruff "N" Tuff is an extremely durable construction material made of rota molded UV stabilized polyethylene meaning that it 100% rustproof & virtually vandal proof.
- Australian Made
- Cools 28. L/Hr from 32 Celsius to 10 Celsius
- 2 Year Warranty
- Option to include Glass Filler ( $95.00)
- Option to include a filter ( see our DKE Filter under the filter section)
RUFF "N" TUFF
Series water cooler cabinets are made of rota-molded pigmented polyethylene. This UV stabilized material provides an external cabinet that is durable, modern, and 100% rust-proof.
Easy service access via the front panel.
✓ Designed in Australian Company
-
100% rust proof cabinet
-
Impact-resistant construction
-
30L of chilled water per hour
-
Optional bottle filler
-
Optional filtration
-
Expansion valve to protect from mains water pressure surges
-
12 Month comprehensive warranty
RUFF “N” TUFF
RUST PROOF CABINET
The new IP33 rating gives extra protection against dust, dirt, and moisture, making the RUFF N TUFF perfect for construction sites, schools, and mines.
SERVICE ACCESS
The front access panel is secured with four concealed stainless steel screws. Removal of this panel provides access for any purpose including service, maintenance, and filter replacement.
VANDAL RESISTANCE
The Rough & Tough has a one-piece rota moulded polyethylene cabinet that can be easily anchored to almost any surface. Along with the internally fitted drain, this provides unequaled vandal resistance.
OPTIONAL FEATURES:
FILTRATION
An internal or external Awesome Water filter will reduce sediment, chemicals, organic compounds, and impurities which can adversely affect the quality and taste of your drinking water. If a filter is required, please specify on order.
TEMPORARY DRAIN KIT
1.5mtr temporary drain kit is available for temporary installations such as construction sites.
INSTALLATION CONNECTIONS:
ELECTRICAL
A 1.5-meter power cord with a standard 3 pin plug is provided. Power consumption Ambient Temp 25deg. (kw.h/24h) 0.044.
WATER INLET
The inlet is an industry-standard 1/2” female BSP threaded connection situated on the rear of the cooler, (see installation instructions for exact rough in details).
DRAIN OUTLET
The drain outlet and integrated p-trap provide an industry
WARRANTY:
The warranty provides comprehensive parts and labour coverage for the period of 12 months from the date of the original sale.
SHIPPING DETAILS PACKED WEIGHT: 28kg
PACKED VOLUME: 0.208M3
PACKED DIMENSIONS: 420mmW x 420mmD x 1180mmH
ORDERING CODES:
CODE
|
DESCRIPTION
|
RM33
|
RUFF N TUFF with bubbler tap only
|
RM33GF
|
RUFF N TUFF with bubbler tap and glass filler
|
CAPACITY:
MODEL NUMBER
|
AMBIENT TEMP
|
INLET TEMP
|
LITRES/HR 10°C WATER
|
RESERVOIR VOLUME
|
RM33
|
32°C
|
27°C
|
30 LPH
|
1.9 Litre
|
* Based on intermittent use under environmental conditions of
ARI Standard 1010 and installation requirements of ARI Standard 1020.
** Due to our policy of continuous development, specifications are subject to change without notice.
*** Colour is as close to actual as printing processes allow.
Standard 40mm connection situated on the rear of the cooler. (See installation instructions for exact rough in details).
A 350kPa PRESSURE LIMITING VALVE MUST BE FITTED UPON INSTALLATION OR WARRANTY WILL BE VOID
INLET:
860mm ABOVE BASE
100mm LEFT OF CENTRE LINE
(from the back)
OUTLET:
860mm ABOVE BASE
30mm LEFT OF CENTRE LINE
(from the back)
